XBD-1331 Precious Metal Brushed DC Motor Featured Image
  • XBD-1331 Precious Metal Brushed DC Motor
  • XBD-1331 Precious Metal Brushed DC Motor
  • XBD-1331 Precious Metal Brushed DC Motor

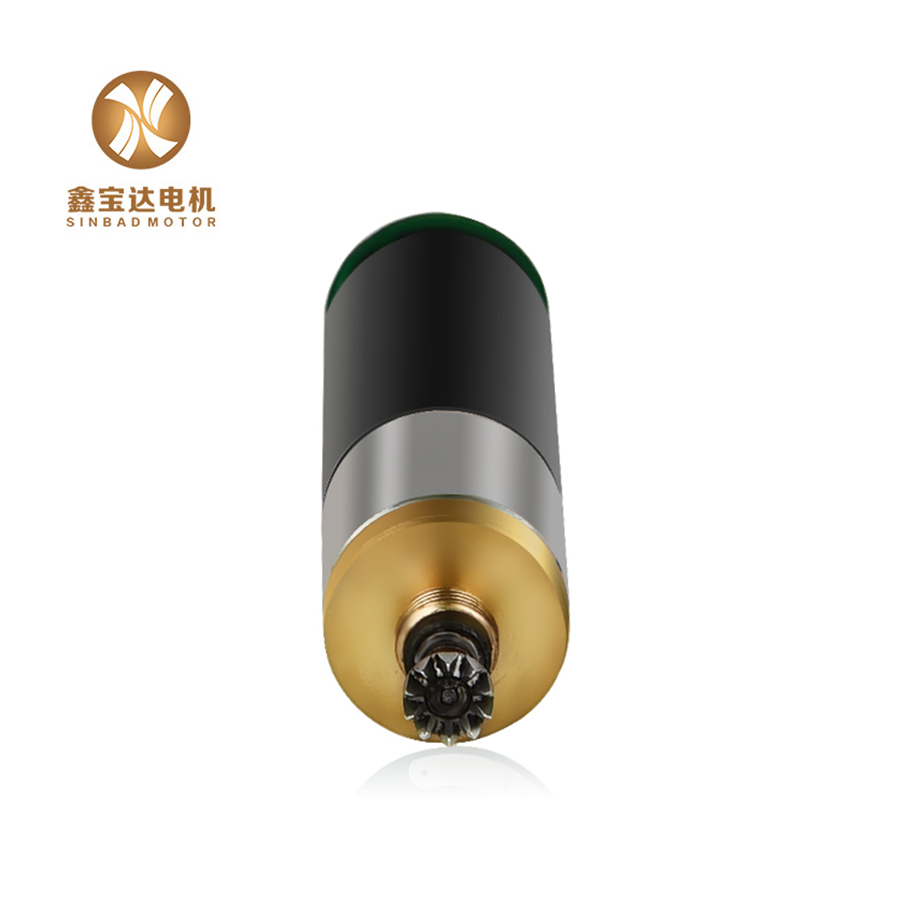

XBD-1331 Precious Metal Brushed DC Motor

Short Description:


  • Nominal voltage: 3~24V
  • Rated torque: 2.1~4.1 mNm
  • Stall torque: 10.3~21 mNm
  • No-load speed: 12000~16200rpm
  • Diameter: 13mm
  • Length: 31mm

    • Product Detail

    Product Tags

    Product Introduction

    The XBD-1331 Precious Metal Brushed DC Motor is a high-performance motor designed to provide a high level of performance in a variety of applications. It features a high-efficiency coreless design that allows it to operate at a higher RPM than most brushed motors, which makes it suitable for applications where speed and torque are important. The motor also has a high power output, making it ideal for use in robotics, small drones, and other applications where high torque is required. The motor is also highly durable and can withstand a wide range of conditions, making it suitable for use in harsh environments.

    Application

    Sinbad coreless motor have a wide range of application such as robots, drones, medical equipment, automobiles, information and communications, power tools, beauty equipment, precision instruments and military industry.

    application-02 (4)
    application-02 (2)
    application-02 (12)
    application-02 (10)
    application-02 (1)
    application-02 (3)
    application-02 (6)
    application-02 (5)
    application-02 (8)
    application-02 (9)
    application-02 (11)
    application-02 (7)

    Advantage

    The XBD-1331 Precious Metal Brushed DC Motor offers the following advantages:

    1. Low noise: The coreless brushed DC motor has few parts and no iron core, which makes it run more smoothly and generate less noise.

    2. High torque: Coreless brushed DC motors have a high torque output due to their design, which makes them ideal for applications requiring high torque.

    3. High efficiency: Coreless brushed DC motors also have high efficiency, meaning that they can convert more of the power they are given into usable work.

    4. Low cost: Coreless brushed DC motors are relatively inexpensive, making them a good choice for budget-conscious applications.

    5. Low maintenance: Coreless brushed DC motors require less maintenance than other motor types, making them a good choice for applications where maintenance needs to be kept to a minimum.

    Parameter

    Motor model                                       1331
    Brush material                                     precious metal
    At nominal
    Nominal voltage V

    3

    6

    12

    24
    Nominal speed rpm

    9600

    8800

    9280

    12960
    Nominal current A

    0.9

    0.5

    0.2

    0.4
    Nominal torque mNm

    2.1

    2.4

    2.0

    4.1

    Free load
    No-load speed rpm

    12000

    11000

    11600

    16200
    No-load current mA

    45.0

    30.0

    18.0

    12.0

    At max efficiency
    Max efficiency %

    80.8

    75.8

    69.4

    70.5
    Speed rpm

    10920

    9735

    9918

    13932
    Current A

    0.4

    0.3

    0.2

    0.3
    Torque mNm

    0.9

    1.4

    1.5

    3.7

    At max output power
    Max output power W

    3.2

    3.5

    3.1

    11.1
    Speed rpm

    6000

    5500

    5800

    8100
    Current A

    2.22

    1.22

    0.56

    0.77
    Torque mNm

    5.1

    6.0

    5.0

    10.5

    At stall
    Stall current A

    4.40

    2.40

    1.08

    1.57
    Stall torque mNm

    10.3

    12.1

    10.1

    21.0

    Motor constants
    Terminal resistance Ω

    0.68

    2.50

    11.11

    12.31
    Terminal inductance mH

    0.05

    0.12

    0.27

    0.75
    Torque constant mNm/A

    2.36

    5.12

    9.60

    13.78
    Speed constant rpm/V

    4000.0

    1833.3

    966.7

    675.0
    Speed/Torque constant rpm/mNm

    1166.1

    910.0

    1150.3

    618.5
    Mechanical time constant ms

    8.0

    6.2

    7.9

    4.2
    Rotor inertia g·cm²

    0.65

    0.65

    0.65

    0.65
    Number of pole pairs                         1
    Number of phase                                5
    Weight of motor           g 20
    Typical noise level dB ≤38

    Samples

    Structures

    DCStructure01
